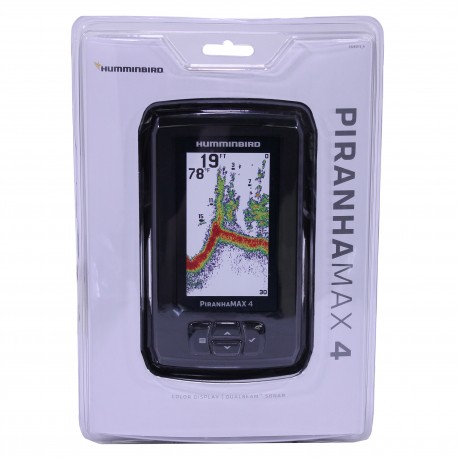

PIRANHAMAX 4 HUMMINBIRD

Piranhamax

The PiranhaMAX 4 features a 256 color 480V X 272H, 4.3" display with 2400 watts PTP power output with Dual Frequency sonar.

Features:

- Tilt and Swivel Mounts: Quickly adjust your viewing area angle.
- Dual Beam

Specifications:

- Display Size - Diagonal: 4.3"
- Display Pixel Matrix: 480H x 272V
- Display Type: Color TFT
- Display Colors Grayscale: 256 Colors
- Sonar Standard: DualBeam
- Standard Sonar Coverage: 28° & 16° @ -10db
- Standard Sonar Frequency: 200/455 kHz
- Target Separation: 2.5"
- Power Output RMS: 300 Watts
- Power Output Peak to Peak: 2400 Watts
- Depth Capability: 600 ft
- Temperature: Built-In Transducer
- Speed: Not Supported
- Backlight: Yes
- Unit Size - Gimbal Mount: 3.914" W x 7.335" H x 3.621" D
- Mount A Type: Gimbal Mount
- Unit Size - Indash Mount: In Dash
- Mount B Unit Size2: 3.914" W x 6.770" H x 2.600" D
- Mounting Options: Gimbal or Optional In-Dash
- Transducer Standard: XNT 9 28 T
- Transducer Mounting: Inside Hull or Transom
- Power Input: 10.8-20 VDC
- Power Draw: 180mA
