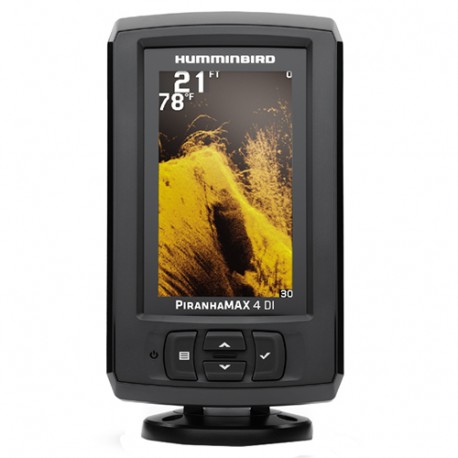

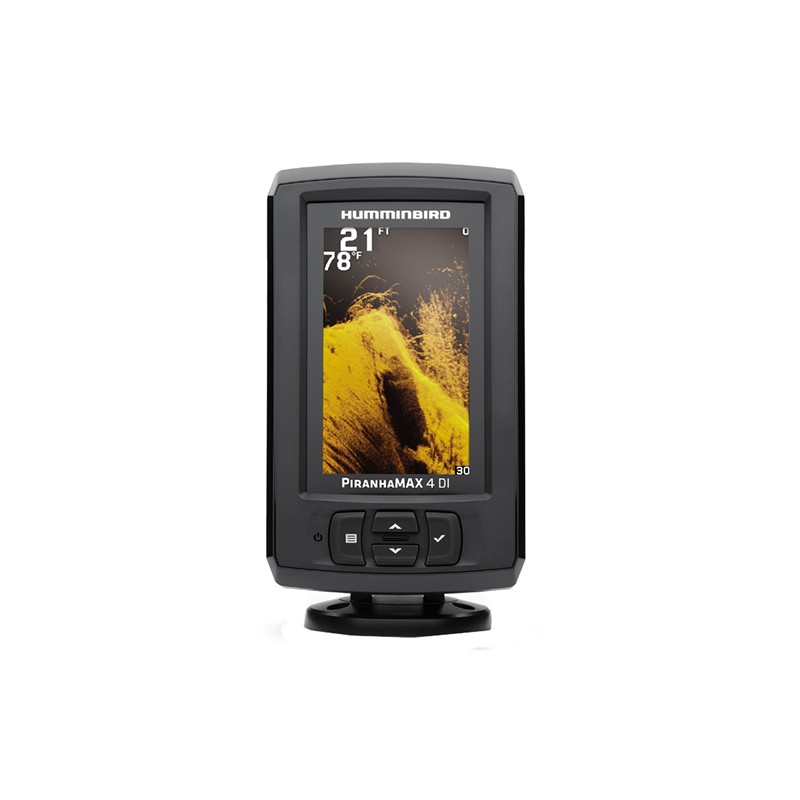

PIRANHAMAX 4 DI HUMMINBIRD

Piranhamax

The PiranhaMAX 4 DI features a 256 color 480V X 272H, 4.3" display with 2400 watts PTP power output with Down Imaging sonar.

Features:

- Down Imaging Sonar: Get a fish-eye's view of what's happening below your boat. Incredible images are created with High-frequency sound waves

Specifications:

- Display Size - Diagonal: 4.3"
- Display Pixel Matrix: 480H x 272V
- Display Type: Color TFT
- Display Colors Grayscale: 256 Colors
- Sonar Standard: Down Imaging/Dual Beam
- Standard Sonar Coverage: 28°, 16° & 75° @ -10db
- Standard Sonar Frequency: 200/455/455 kHz
- Target Separation: 2.5"
- Power Output RMS: 300 Watts
- Power Output Peak to Peak: 2400 Watts
- Depth Capability: 600'
- Temperature: Built-In Transducer
- Speed: Not Supported
- Backlight: Yes
- Unit Size - Gimbal Mount: 3.914" W x 7.335" H x 3.621" D
- Mount A Type: Gimbal Mount
- Unit Size - Indash Mount: In Dash
- Mount B Unit Size2: 3.914" W x 6.770" H x 2.600" D
- Mounting Options: Gimbal or Optional In-Dash
- Transducer Standard: XNT 9 DI T
- Transducer Mounting: Transom
- Power Input: 10.8-20 VDC
- Power Draw: 180mA
