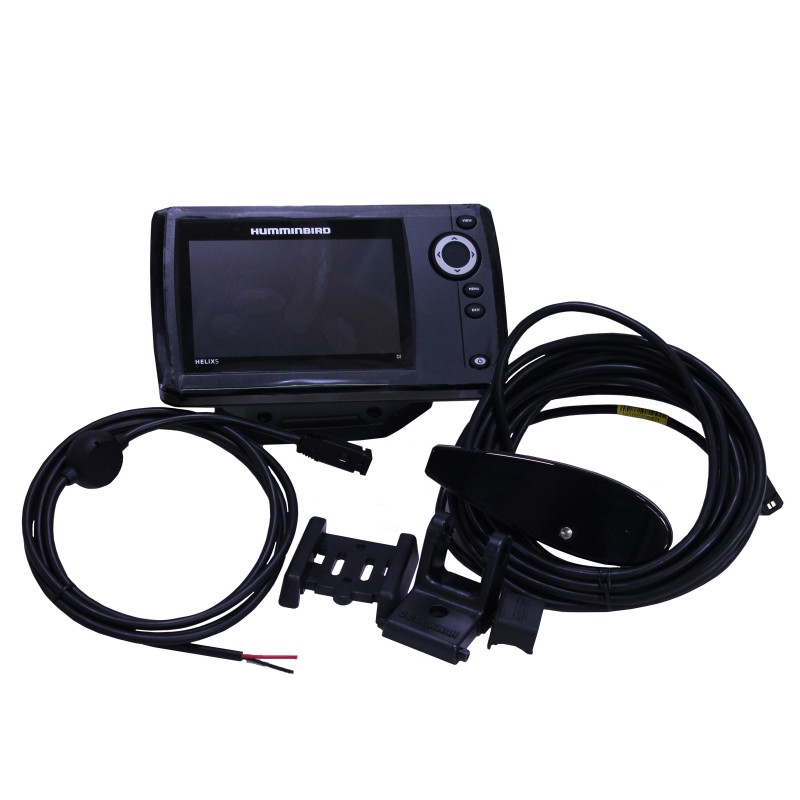

HELIX 5 DI G2 HUMMINBIRD

Helix 5

The HELIX 5 DI G2 with user interface and operating system, features a brilliant 800H x 480V, 5" 256 color display with backlight. Down Imaging and DualBeam PLUS sonar with 4000 watts PTP power output. Maximize your angling experience with the Humminbird HELIX 5 DI fishfinder system.

Features:

- Down Imaging Sonar: Get a fish-eye's view of what's happening below your boat. Incredible images are created with High-frequency sound waves.
- SwitchFire Sonar: Take command of how your sonar returns appear with Clear and Max Modes.
- DualBeam Plus Sonar: Two beams combine for great detail and a wide coverage area. Use the narrow beam for high-accuracy returns and bottom. Use the wide beam when you want a larger search area
- Up-gradable Software: Access software updates to enhance the performance of your Humminbird unit through the My Humminbird section of the site

Specifications:

- Display Size - Diagonal:5"
- Display Pixel Matrix:800H X 480V
- Display Type:Color TFT
- Display Colors Grayscale:16-bit
- Sonar Standard:Down Imaging/DualBeam PLUS
- Standard Sonar Coverage:16°, 28°, 45° & 75° @ -10db
- Standard Sonar Frequency:455/800/200/455 kHz
- Sonar Optional:None
- Target Separation:2.5"
- Power Output RMS:500 Watts
- Power Output Peak to Peak:4000 Watts
- Depth Capability:350' (DI) & 600' (2D)
- Temperature:Built-In Transducer
- Speed:Optional
- Backlight:LED
- Unit Size - Gimbal Mount:7.55"W x 4.64"H x 3.3"D
- Mount A Type:Gimbal Mount
- Unit Size - Indash Mount:7.55"W x 4.28"D x 1.13"D
- Mount B Unit Size2:Optional In-Dash
- Mounting Options:Gimbal or Optional In-Dash
- Transducer Standard:XNT 9 DI T
- Transducer Mounting:Transom
- Power Input:10.8-20 VDC
- Power Draw:650 mA
- PC Connect:Optional
- SwitchFire Sonar:Included
- Humminbird PC:Optional
- Upgradable Internal Software:Optional
- Split Screen Zoom:Included
- Split Screen Bottom Lock:Included
- Large Digits View:Included
- Wide/Narrow Cone Split Screen:Included
- Custom View Selections:Included
- Custom Digital Readout:Included
- Temperature Alarm:Included
- Freeze Frame:Included
- Instant Image Update:Included
- Selective Fish ID+:Included
- Real Time Sonar:Included
- Triplog:Optional
- X-Press Menu System:Included
- Card Reader Available:No
