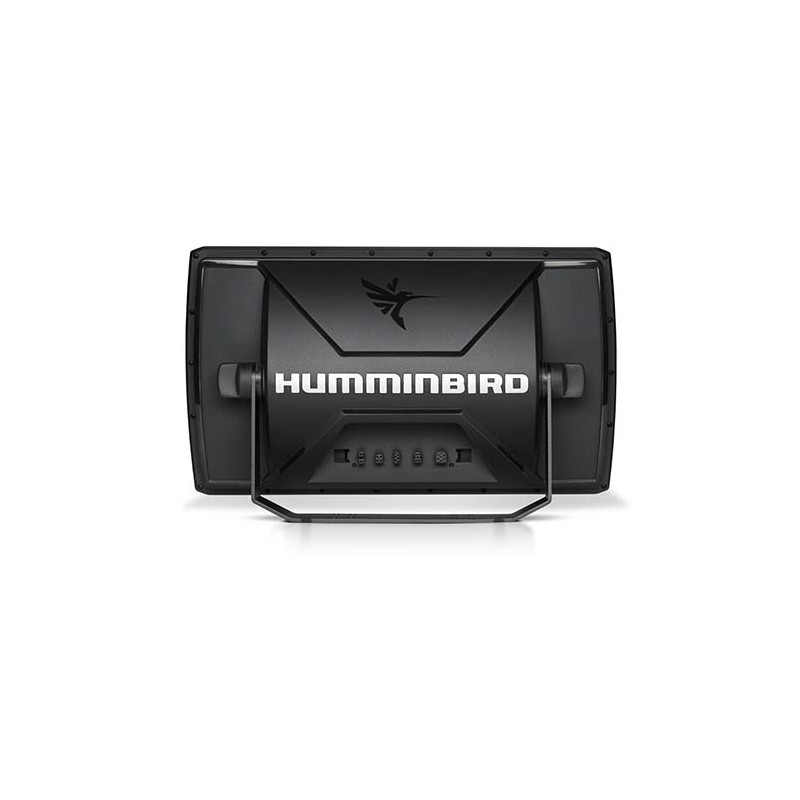

HELIX 12 CHIRP MDI GPS G3N HUMMINBIRD

Helix 12

The HELIX 12 CHIRP MEGA DI+ GPS G3N features a commanding 12.1" display, MEGA Down Imaging+ and Dual Spectrum CHIRP Sonar. Includes GPS mapping, built-in Bluetooth, Ethernet networking capabilities and ability to create your own maps in real-time with AutoChart Live's depth, vegetation and bottom hardness mapping. Humminbird Basemap cartography is built-in, with the option to expand your mapping capabilities with available LakeMaster charts.

Features:

- MEGA Down Imaging+: Get unprecedented underwater clarity with coverage down to 200' below your boat. You'll unlock the details with up to 3X more output than standard Down Imaging sonar
- Dual Spectrum CHIRP: Before you cast, know what's down there thanks to long, well-defined fish arches, and a clear view of fish-holding structure and the bottom. Powered by Humminbird's proprietary, Low Q CHIRP transducer, Dual Spectrum offers two ways to search: wide mode for maximum coverage and narrow mode for maximum detail
- SwitchFire Sonar: Take command of how your sonar returns appear. With two display modes, you can add or remove detail, account for water depth, temperature and turbulence, even watch lure presentations - all at the push of a button
- Humminbird Basemap Built-in: Humminbird's enhanced standard basemap provides you with a clear view of underwater terrain and surrounding points of interest so you can fish and navigate with total confidence. Identify buoys, day markers, hazards, marinas, contours, depth markers and much, much more. Includes charts of more than 10,000 lakes, plus coastal coverage for the U.S.
- AutoChart Live: Create real-time maps of your fishing spots, with access to patented Humminbird LakeMaster features. Map depth contours, bottom hardness and vegetation as you drive your boat, with eight hours of built-in recording time
- Ethernet Networking: High-speed Ethernet allows you to build a powerful, professional-grade fishing system. Easily connect multiple fish finders, or upgrade to add-on technologies like Minn Kota i-Pilot Link, 360 Imaging and CHIRP Radar
- Bluetooth: Enable features like wireless software updates from the Humminbird FishSmart App and also keep your phone out of the water and in your pocket by displaying notifications on your Humminbird. Additionally, you can take control of your most-used features with an optional Bluetooth remote (RC2)
- LakeMaster Compatible: Upgrade to the unrivaled accuracy and detail of Humminbird LakeMaster maps. From easy-to-read contours, to highlighted depth ranges and adjustable water levels, you'll have all the tools you need to make every moment count

Includes:

- Transducer
- Mounting hardware
- Power cable
- Gimbal mounting bracket
- Unit cover

Specifications:

- Basemap: Yes
- Card Format: Micro SD
- Cartography - Preloaded: No
- Cartography Brand: Humminbird/Navionics
- Cartography Type: Humminbird/Navionics+/Navionics Platinum+
- Frequency: 50/83/200/455/800 kHz & 1.2 MHz
- Included Transducer: XM-9-HW-MDI-T
- Internal/External Antenna: Internal
- Resolution (VxH): 480 x 800
- Screen Size: 12'
- Touchscreen: No
- Transducer Type: Transom Mount
- Watts RMS - Max: 1000
