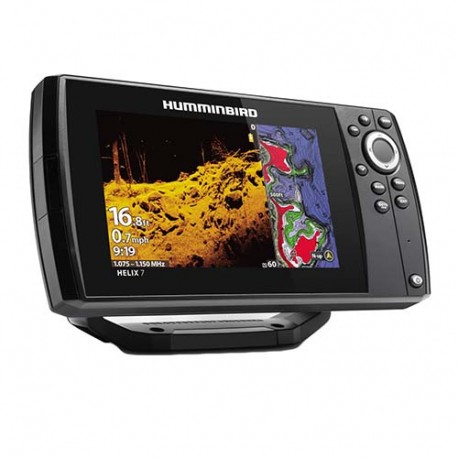

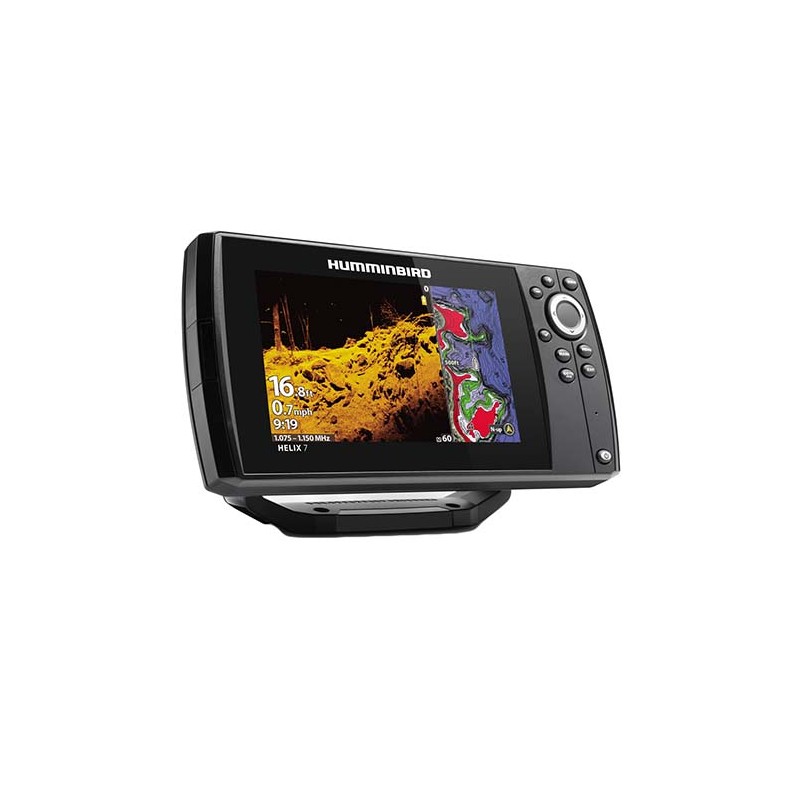

HELIX 7 CHIRP MDI GPS G3 NAV HUMMINBIRD

Helix 7

The HELIX 7 CHIRP MEGA DI GPS G3 NAV+ fish finder features MEGA Down Imaging, Dual Spectrum CHIRP Sonar, AutoChart Live, GPS and Humminbird Basemap built-in. The 7", ultra-wide display gives you ample room to view the many pre-loaded split screen view options. This unit includes a Navionics+ map card with data for over 21,000 lakes in the U.S. and Canada.

Features:

- Includes Navionics+ (U.S. and Canada) SD card for out-of-the-box map coverage of over 21,000 lakes and waterbodies
- MEGA Down Imaging: Get unprecedented underwater clarity with coverage down to 125 feet below your boat. You'll unlock the details with up to 3X more output than standard Down Imaging sonar
- Dual Spectrum CHIRP: Before you cast, know what's down there thanks to long, well-defined fish arches, and a clear view of fish-holding structure and the bottom. Powered by Humminbird's proprietary, Low Q CHIRP transducer, Dual Spectrum offers two ways to search: wide mode for maximum coverage and narrow mode for maximum detail
- SwitchFire Sonar: Take command of how your sonar returns appear. With two display modes, you can add or remove detail, account for water depth, temperature and turbulence, even watch lure presentations - all at the push of a button
- Humminbird Basemap Built-in: Humminbird's enhanced standard basemap provides you with a clear view of underwater terrain and surrounding points of interest so you can fish and navigate with total confidence. Identify buoys, day markers, hazards, marinas, contours, depth markers and much, much more. Includes charts of more than 10,000 lakes, plus coastal coverage for the U.S.
- AutoChart Live: Create real-time maps of your fishing spots, with access to patented Humminbird LakeMaster features. Map depth contours, bottom hardness and vegetation as you drive your boat, with eight hours of built-in recording time
- Ethernet Networking: High-speed Ethernet allows you to build a powerful, professional-grade fishing system. Easily connect multiple fish finders, or upgrade to add-on technologies like Minn Kota i-Pilot Link, 360 Imaging and CHIRP Radar
- Bluetooth: Enable features like wireless software updates from the Humminbird FishSmart App and also keep your phone out of the water and in your pocket by displaying notifications on your Humminbird. Additionally, you can take control of your most-used features with an optional Bluetooth remote (RC2)
- LakeMaster Compatible: Upgrade to the unrivaled accuracy and detail of Humminbird LakeMaster maps. From easy-to-read contours, to highlighted depth ranges, to scrollable lake lists, you'll have all the tools you need to make every moment count

Includes:

- Transducer
- Mounting hardware
- Power cable
- Gimbal mounting bracket

Specifications:

- Series: HELIX
- Display Size - Diagonal: 7"
- Display Pixel Matrix: 800H x 480V
- Sonar-Standard: Dual Spectrum CHIRP, MEGA Down Imaging
- Sonar-Optional: 50 kHz, 50/Low Airmar CHIRP
- CHIRP - Frequencies Supported: Full Mode (150-220 kHz), Narrow Mode (180-240 kHz), Wide Mode (140-200 kHz)
- Sonar-Frequencies Supported: 50/83/200/455 kHz
- Depth-Sonar: 1,200' (standard transducer), 3,500' (optional 50 kHz)
- CHIRP - Imaging-Frequencies Supported: MEGA DI (1075-1150 kHz), 455 kHz (440-500 kHz)
- Depth-Down Imaging: 350' (455 kHz), 125' (MEGA)
- Interface: Keypad Control
- Memory Card Slot: Single Micro SD
- Power Draw: 800 mA
- Power Input: 10.8-20 VDC
- Power Output Peak-to-Peak: 4000 Watts
- Power Output RMS: 500 Watts
- Screen Snap Shot: Included
- Sonar Recording: Included
- Mount-Standard: Gimbal
- Mount-Standard Size: 10.54" W x 5.8" H x 3.68" D
- Mount-Optional: In-Dash Mounting Kit
- Mount-Optional Size: 10.54" W x 5.44" H x 1.13" D
- Transducer Included: XNT 9 HW MDI 75 T
- Transducer Mount Location: Transom
- GPS Chartplotting: Included
- GPS Receiver: Internal
- GPS Trackplotting: Included
- Waypoints, Routes, Tracks/Points: 2,750, 45, 50/20,000
- 360 Imaging Compatibility: No
- Humminbird Basemap: Included
- LakeMaster Compatibility: Yes
- Minn Kota i-Pilot Link Compatibility: No
- Minn Kota Talon Shallow Water Anchor Compatibility: No
- Navionics Gold/HotMaps Compatibility: Yes
- Navionics Platinum + Compatibility: Yes
- Platinum Compatibility: Yes
- Radar Compatibility: No
- 5-Port Ethernet Switch Compatibility: No
- AIS Compatibility: Optional
- Heading Sensor GPS Compatibility: Yes
- NMEA2000: Not Supported
- Target Separation: 2.5"
- Upgradable Software: Yes
- View Preset Keys: No
- X-Press Menu System: Yes
- Custom Digital Readout: Yes
- Custom View Selections: Yes
- Display Colors Grayscale: 16-Bit
- Display Type: Color TFT
- Temperature: Built In
- Temperature Alarm: Yes
- Temperature Graph: Yes
