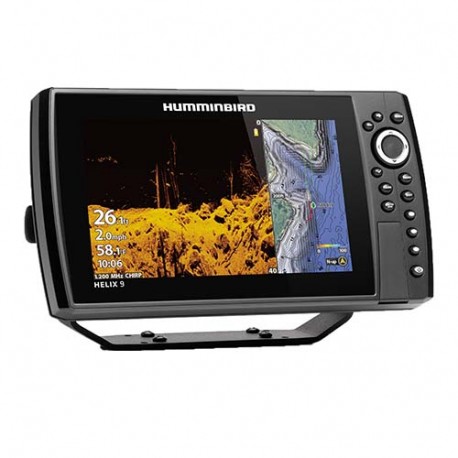

HELIX 9 CHIRP MSI GPS G3N HUMMINBIRD

HELIX 9

The HELIX 9 CHIRP MEGA SI+ GPS G3N features a 9" display, MEGA Side Imaging+, MEGA Down Imaging+ and Dual Spectrum CHIRP Sonar. Includes GPS mapping with built-in Bluetooth, Ethernet networking capabilities, AutoChart Live with depth, vegetation and bottom hardness mapping. Fish and navigate with confidence thanks to the guidance of Humminbird Basemap built-in.

Features:

- MEGA Side Imaging+: See the world below like never before with crystal-clear viewing out to 200' on either side of your boat. You'll unlock more fish and structure with 20% more detail than MEGA Side Imaging Sonar
- MEGA Side Imaging+: See the world below like never before with crystal-clear viewing out to 200' on either side of your boat. You'll unlock more fish and structure with 20% more detail than MEGA Side Imaging Sonar
- Dual Spectrum CHIRP: Before you cast, know what's down there thanks to long, well-defined fish arches, and a clear view of fish-holding structure and the bottom. Powered by Humminbird's proprietary, Low Q CHIRP transducer, Dual Spectrum offers two ways to search: wide mode for maximum coverage and narrow mode for maximum detail
- SwitchFire Sonar: Take command of how your sonar returns appear. With two display modes, you can add or remove detail, account for water depth, temperature and turbulence, even watch lure presentations - all at the push of a button
- Humminbird Basemap Built-in: Humminbird's enhanced standard basemap provides you with a clear view of underwater terrain and surrounding points of interest so you can fish and navigate with total confidence. Identify buoys, day markers, hazards, marinas, contours, depth markers and much, much more. Includes charts of more than 10,000 lakes, plus coastal coverage for the U.S.
- AutoChart Live: Create real-time maps of your fishing spots, with access to patented Humminbird LakeMaster features. Map depth contours, bottom hardness and vegetation as you drive your boat, with eight hours of built-in recording time
- Ethernet Networking: High-speed Ethernet allows you to build a powerful, professional-grade fishing system. Easily connect multiple fish finders, or upgrade to add-on technologies like Minn Kota i-Pilot Link, 360 Imaging and CHIRP Radar
- Bluetooth: Enable features like wireless software updates from the Humminbird FishSmart App and also keep your phone out of the water and in your pocket by displaying notifications on your Humminbird. Additionally, you can take control of your most-used features with an optional Bluetooth remote (RC2)
- LakeMaster Compatible: Upgrade to the unrivaled accuracy and detail of Humminbird LakeMaster maps. From easy-to-read contours, to highlighted depth ranges and adjustable water levels, you'll have all the tools you need to make every moment count

Includes:

- Transducer
- Mounting hardware
- Power cable
- Gimbal mounting bracket
- Unit cover

Specifications:

- Series: HELIX
- Display Size - Diagonal: 9"
- Display Pixel Matrix: 800H x 480V
- Sonar-Standard: Dual Spectrum CHIRP, MEGA Down Imaging+, MEGA Side Imaging+
- Sonar-Optional: 50 kHz, 50/Low Airmar CHIRP
- CHIRP - Frequencies Supported: Full Mode (150-220 kHz), Narrow Mode (180-240 kHz), Wide Mode (140-200 kHz)
- Sonar-Frequencies Supported: 50/83/200/455/800 kHz & 1.2 MHz
- Depth-Sonar: 1,200' (standard transducer), 3,500' (optional 50 kHz)
- CHIRP - Imaging-Frequencies Supported: 455 kHz DI+ (435-535 kHz), 455 kHz SI+ (405-505 kHz), 800 kHz DI+ (800-860 kHz), 800 kHz SI+ (780-840 kHz), MEGA DI+ (1100-1200 kHz), MEGA SI+ (1050-1175 kHz)
- Depth-Down Imaging: 125' (800 kHz), 200' (MEGA), 400' (455 kHz)
- Range-Side Imaging (Side-To-Side): 800' (455 kHz), 250' (800 kHz), 400' (MEGA)
- Interface: Keypad Control
- Memory Card Slot: Dual Micro SD
- Power Draw: 1 Amp
- Power Input: 10.8-20 VDC
- Power Output Peak-to-Peak: 8000 Watts
- Power Output RMS: 1000 Watts
- Screen Snap Shot: Included
- Sonar Recording: Included
- Mount-Standard: Gimbal
- Mount-Standard Size: 12.00 W x 7.0 H x 4.13 D
- Mount-Optional: In-Dash Mounting Kit
- Mount-Optional Size: 12.00 W x 6.63 H x 1.32 D
- Transducer Included: XM 9 HW MSI T
- Transducer Mount Location: Transom
- GPS Chartplotting: Included
- GPS Receiver: Internal
- GPS Trackplotting: Included
- Waypoints, Routes, Tracks/Points: 2,750, 45, 50/20,000
- 360 Imaging Compatibility: Yes
- Humminbird Basemap: Included
- LakeMaster Compatibility: Yes
- Minn Kota i-Pilot Link Compatibility: Yes
- Minn Kota Talon Shallow Water Anchor Compatibility: Yes
- Navionics Gold/HotMaps Compatibility: Yes
- Navionics Platinum + Compatibility: Yes
- Platinum Compatibility: Yes
- Radar Compatibility: Yes
- 5-Port Ethernet Switch Compatibility: Yes
- AIS Compatibility: Optional
- Heading Sensor GPS Compatibility: Yes
- NMEA2000: Optional
- Target Separation: 2.5"
- Upgradable Software: Yes
- View Preset Keys: Yes
- X-Press Menu System: Yes
- Custom Digital Readout: Yes
- Custom View Selections: Yes
- Display Colors Grayscale: 16-Bit
- Display Type: Color TFT
- Temperature: Built In
- Temperature Alarm: Yes
- Temperature Graph: Yes
