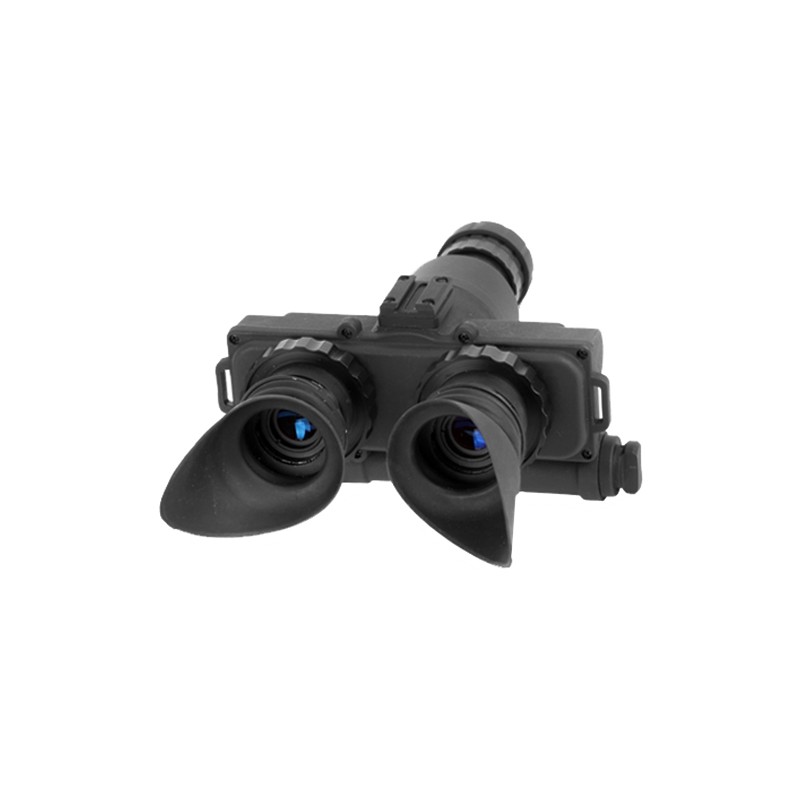

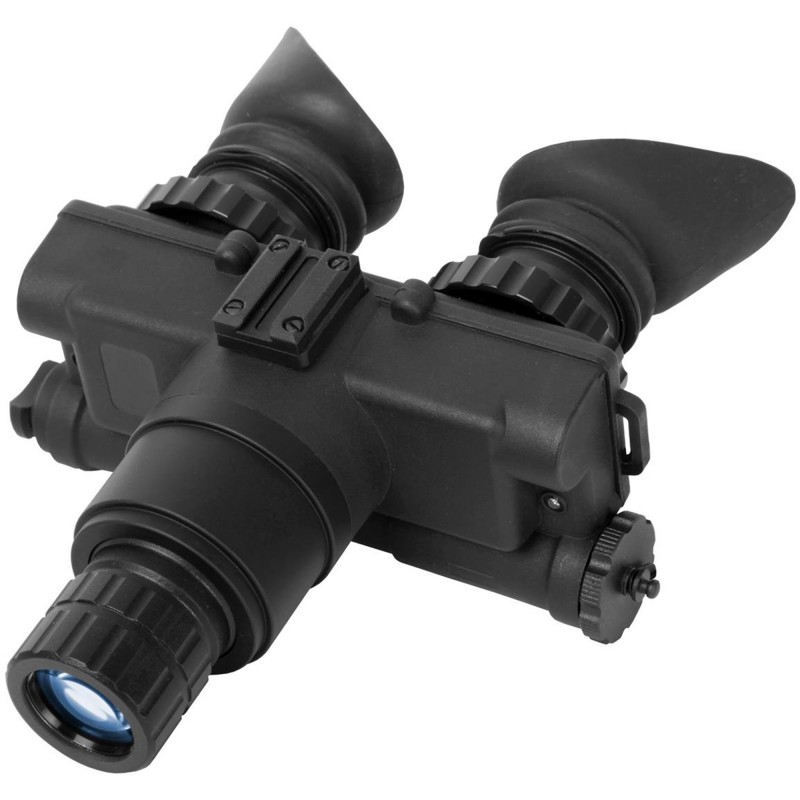

NVG7-2, Night vision Goggle ATN-CORPORATION

NVG7 Goggles

The ATN NVG7-2 Night Vision Goggles is a single-tube Night Vision System built around High Grade 18 mm Gen 2+ Image Intensifier Tube and utilizes a pseudo Binocular design for added observation convenience. It has a built-in IR light source for close-up illumination in complete darkness.
Lightweight, rugged and a top-notch Goggles the ATN NVG7-2 is an exceptional choice for hands free usage. The ATN NVG7-2 is available with a wide range of Image Intensifier Tubes to meet a wide array of specification requirements.

Features:

- Lightweight, compact rugged Goggle system
- Multi-purpose: Hand-held, head-mounted or helmet-mounted
- Comfortable, flip-up headgear
- Multi-coated all-glass optics
- Wide angle infrared illuminator
- Weather and fog resistant
- Limited Two-Year Warranty

Specifications:

- Total Darkness IR System: Yes
- "SMART" Technology: No
- Multi-Purpose System: No
- IIT Generation: 2+
- Resolution: 40-45 lp/mm
- Magnification: 1x
- Lens System: F1.2, 26 mm
- Proshield Lens Coating: Yes
- FOV: 40
- Range of Focus: 0.25 m to infinity
- Diopter Adjustment: -5 to +5
- Controls: Digital
- Automatic Brightness Control: Yes
- Bright Light Cut-off: Yes
- Automatic Shut-off System: Yes
- Infrared Illuminator: Yes
- IR Indicator: Yes (in FOV)
- Low Battery Indicator: Yes (in FOV)
- Power Supply 1x1.5 V AA type battery or 1x3 V CR123A type battery
- Battery Life: 60 hrs
- Environmental Rating: Weather and fog resistant
- MIL-STD-810 Complies
- Operating Temperature: -40 to +50 C
- Storage Temperature: -50 to +70 C
- Dimensions: 172 x 62 x 102 mm / 6.7" x 2.5" x 4.0"
- Weight: 0.45 kg / 0.9 lbs
- Warranty: 2 years
