PS15-2, Night vision Goggle ATN-CORPORATION

PS15

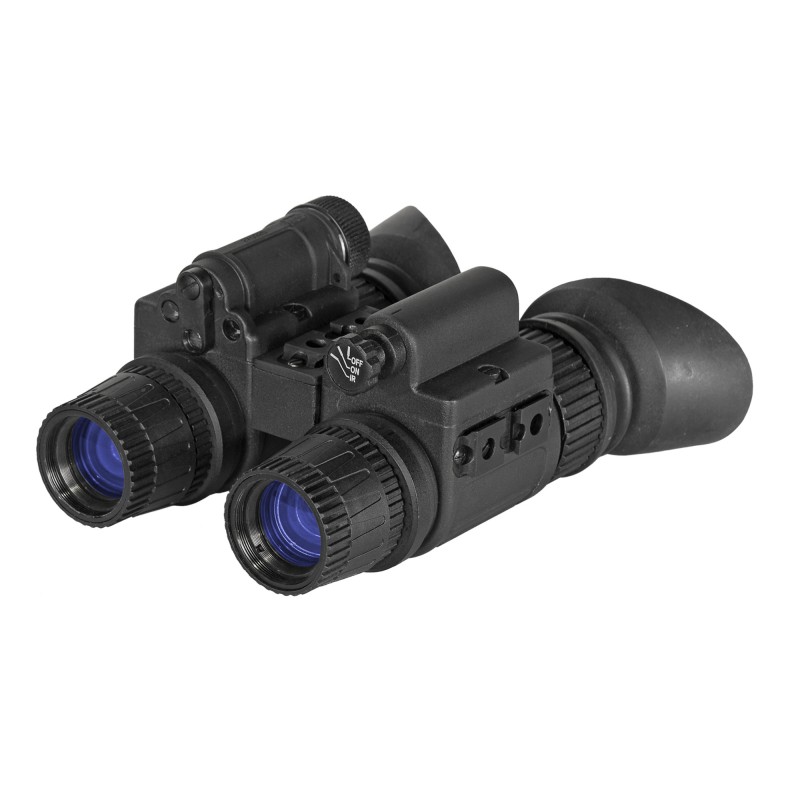

The ATN PS15-2 is a compact, lightweight dual Night Vision Goggle System. It utilizes two high-performance Image Intensifier Tubes to provide extremely clear and crisp images under the darkest conditions. This dual tube design provides increased depth perception and outstanding clarity. A built-in IR lets the user easily read a map and function in a total darkness environment.

Available in a wide array of Image Intensifier Tube configurations the ATN PS15-2 Night Vision Goggles is designed to handle every budget and mission requirement. The ATN PS15-2 Night Vision System is the high-performance choice!

Features:

- Dual goggle/binocular
- Hands-free usage
- Comfortable, flip-up Head gear
- Lightweight, Compact
- Depth Perception
- Optional powerful 3x A focal lenses to make into binocular
- Waterproof

Specifications:

- Total Darkness IR System: Yes
- "SMART" Technology: No
- Multi-Purpose System: No
- IIT Generation: 2+
- Photocathode Type: Multi - Alkali
- Resolution: 40 lp/mm
- Signal to Noise Ratio: 12-20
- Figure of Merit: 1250
- MTTF - Mean Time Before Failure: 5,000 hours
- Magnification: 1x
- Lens System: F1.2, 27 mm
- Proshield Lens Coating: Yes
- FOV: 40
- Range of Focus: 0.25 m to infinity
- Diopter Adjustment: -6 to +2
- Controls: Direct
- Automatic Brightness Control: Yes
- Bright Light Cut-off: Yes
- Automatic Shut-off System: Yes
- Infrared Illuminator: Yes (Built-in with flood lens)
- IR Indicator: Yes (in FOV)
- Low Battery Indicator: Yes (in FOV)
- Power Supply: 1x1.5 V AA type battery or 1x3 V CR123A type battery
- Battery Life: 40 hrs
- Environmental Rating: Waterproof
- MIL-STD-810: Complies
- Operating Temperature: -40 to +50 C
- Storage Temperature: -50 to +70 C
- Dimensions: 120 x 114 x 69 mm (4.7" x 4.5" x 2.7").
- Weight: 0.7 kg / 1.54 lbs
