PS15-3P, Night vision Goggle ATN-CORPORATION

PS15

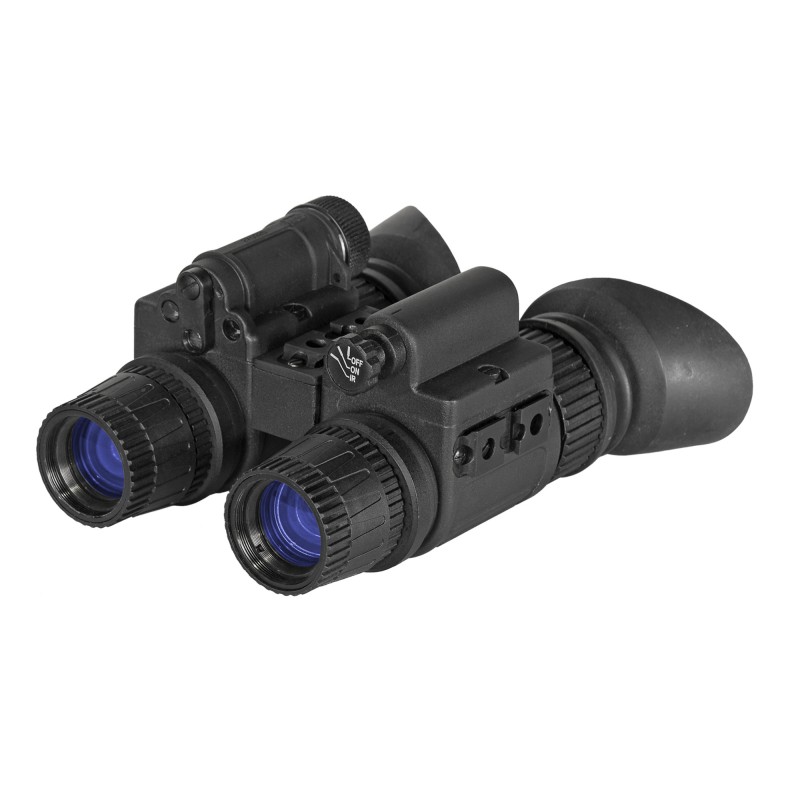

The ATN PS15 is a compact, lightweight dual Night Vision Goggle System. It utilizes two high-performance Image Intensifier Tubes to provide extremely clear and crisp images under the darkest conditions. This dual tube design provides increased depth perception and outstanding clarity. A built-in IR lets the user easily read a map and function in a total darkness environment. Available in a wide array of Image Intensifier Tube configurations the ATN PS15 Night Vision Goggles is designed to handle every budget and mission requirement. The ATN PS15 Night Vision System is the high-performance choice!

Features:

- Depth Perception
- Waterproof
- 1 x 3V(CR123A) or 1x 1.5V(AA type)
- 1x magnification
- Hands-free usage
- One-knob operation
- Automatic Brightness Control
- Comfortable flip-up headgear

Specifications:

- Total Darkness IR System: Yes
- IIT Generation: 3P
- Resolution: 64-72 lp/mm
- Signal to Noise Ratio: 25-30
- Figure of Merit: 1800 typical
- MTTF - Mean Time Before Failure: 10,000 hours
- Magnification: 1x
- Lens System: F1.2, 27 mm
- Proshield Lens Coating: Yes
- FOV: 40
- Range of Focus: 0.25 yd/m to infinity
- Diopter Adjustment: -6 to +2
- Controls: Direct
- Automatic Brightness Control: Yes
- Bright Light Cut-off: Yes
- Infrared Illuminator: Built-in
- IR Indicator: Yes
- Low Battery Indicator: Yes
- Power Supply: 1 x 3V(CR123A) or 1x 1.5V(AA type)
- Battery Life: 25-60 hours
- Environmental Rating: Waterproof
- Operating Temperature: -40F to +122F
- -40C to +50C
- Storage Temperature: -58F to +158F
- -50 to +70 C
- Dimensions: 4.7" x 4.5" x 2.7"
- 120 x 114 x 69 mm
- Weight: 1.54 lbs /0.7 kg
- Warranty: 2 years
