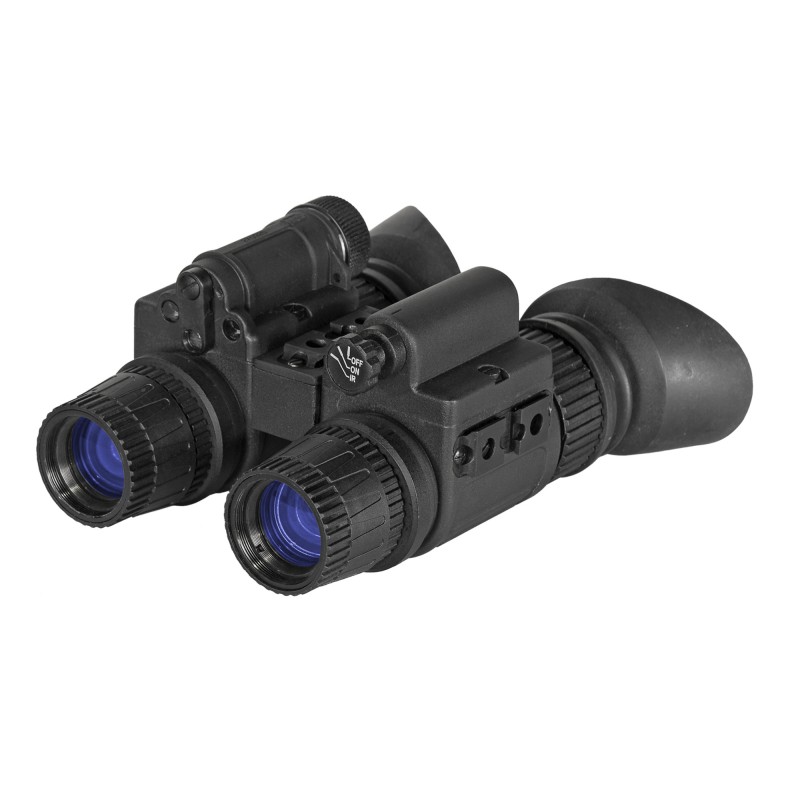

PS15-WPT, Night vision Goggle ATN-CORPORATION

PS15

The ATN PS15-WPT is a compact, lightweight dual night vision goggle system. It utilizes two high performance image intensifier tubes to provide extremely clear and crisp images under the darkest conditions. This dual tube design provides increased depth perception and outstanding clarity. A built-in IR lets the user easily read a map and function in a total darkness environment. Available in a wide array of image intensifier tube configurations the ATN PS15-WPT is designed to handle every budget and mission requirement. The ATN PS15-WPT is the high performance choice!

Features:

- Dual goggle/binocular
- Hands-Free use
- Comfortable flip-up headgear
- Lightweight, Compact
- Depth Perception
- Optional 3x Afocal lenses to make into a binocular
- Waterproof
- Total Darkness IR System: Yes
- "SMART" Technology: No
- Multi-Purpose System: No
- IIT Generation WPT
- Photocathode Type: Multi-Alkali
- Resolution: 60-74 lp/mm
- Signal to Noise, minimum: 18-26
- MTTF - Mean Time Before Failure: 10,000 hours
- Magnification: 1x
- Lens System: F1.2, 27 mm
- Proshield Lens Coating: Yes
- FOV 408
- Range of Focus: 0.25 m to infinity
- Diopter Adjustment: -6 to +2
- Controls: Direct
- Automatic Brightness Control: Yes
- Bright Light Cut-off: Yes
- Automatic Shut-off System: Yes
- Infrared Illuminator: Yes (Built-in with flood lens)
- IR Indicator: Yes (in FOV)
- Low Battery Indicator: Yes (in FOV)
- Power Supply: 1x1.5 V AA type battery or
- 1x3 V CR123A type battery
- Battery Life: 40 hrs
- Environmental Rating
- Waterproof
- MIL-STD-810: Complies
- Operating Temperature: -40 to +50 8C
- Storage Temperature: -50 to +70 8C
- Dimensions: 120x114x69 mm 4.7"x4.5"x2.7"
- Weight: 0.7 kg / 1.54 lbs
