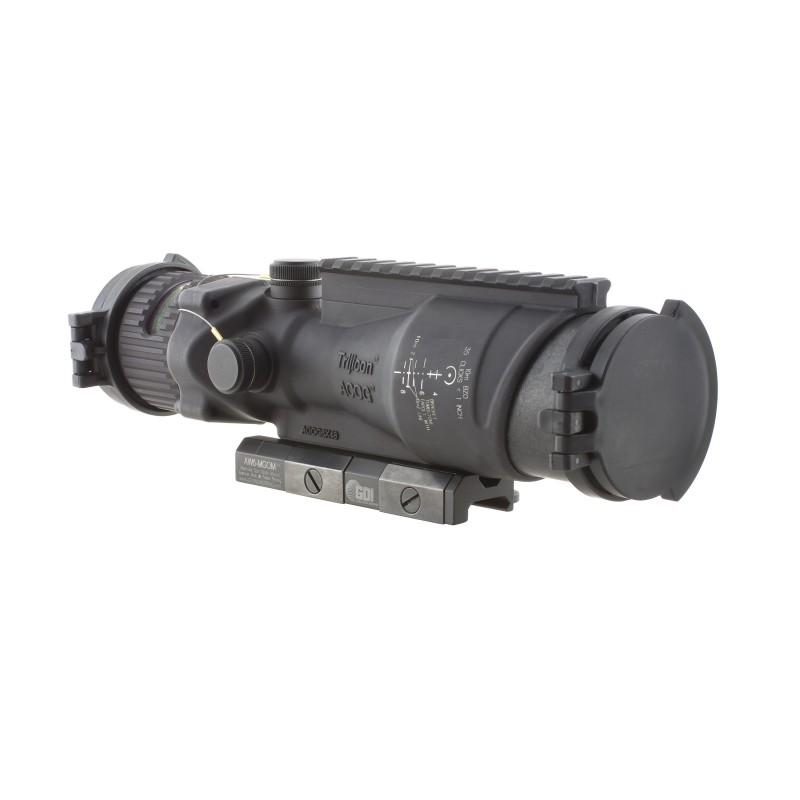

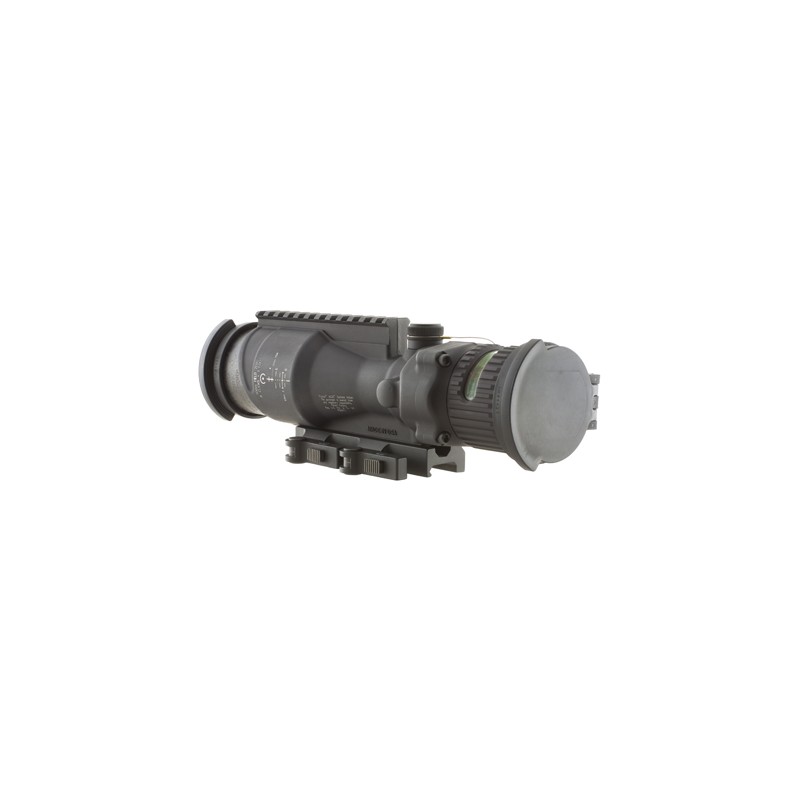

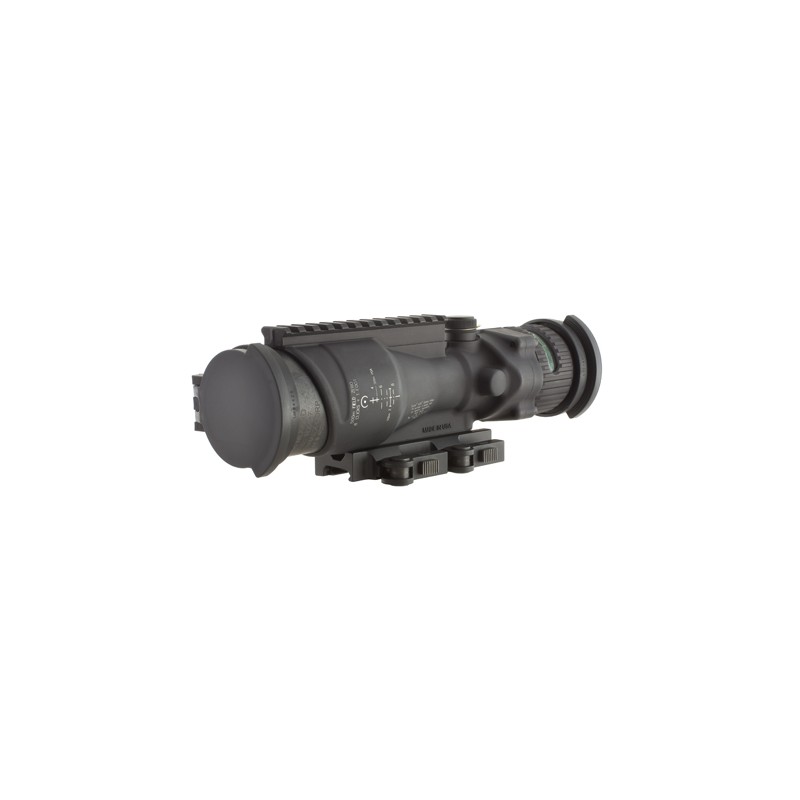

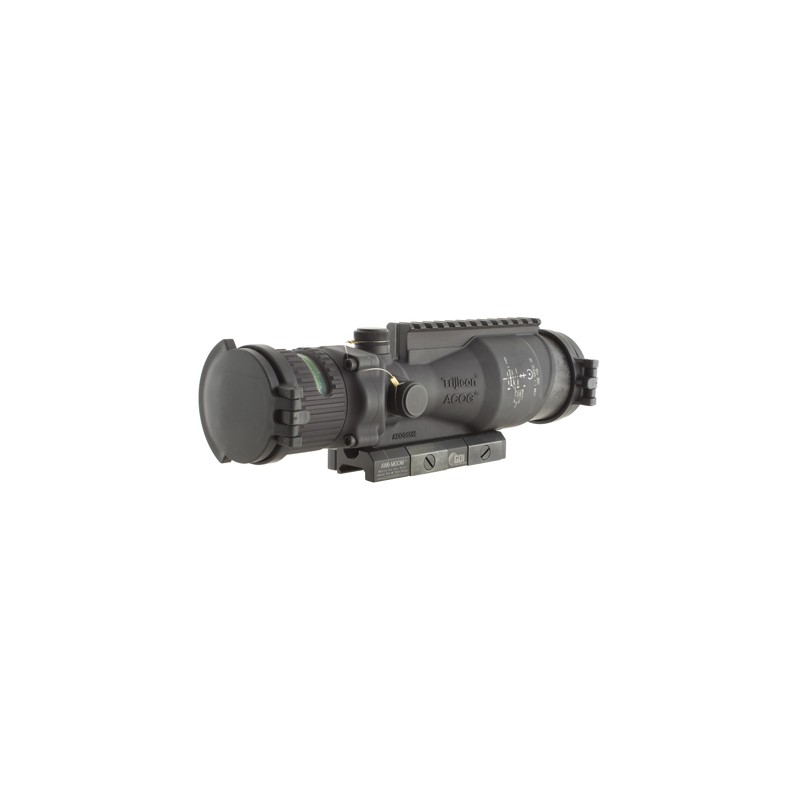

ACOG6x48,.308 M240 Ball Ret TRIJICON

ACOG 6x48mm Dual Illumination Scope

The TA648MGO-M240 6x48 ACOG is a Machine Gun Optic (MGO) designed specifically for the M240 weapon system. The MGO provides the shooter enhanced target identification and increased hit probability out to 1200 meters utilizing the Bullet Drop Compensator. With a built in 1913 Picatinny rail on top, the MGO allows the end user to incorporate the Trijicon 1x42 Reflex (RX30/RX34) sight for convoy operations and/or Close Combat situations or any other target designators.

The TA648MGO-M240 incorporates dual-illumination technology using a combination of fiber optics and self-luminous tritium. This allows the close in reflexive fire aiming point to be illuminated without the use of batteries. The tritium illuminates the aiming point in total darkness, and the fiber-optic self-adjusts reticle brightness during daylight according to ambient light conditions. This allows the operator to keep both eyes open while engaging close in targets and maintaining maximum situational awareness.

Optic Features:

- Fiber Optic Illumination Adjuster
- Integrated M1913 Rail
- 500m Zero and 10m BZO Zeroing Instructions Laser Etched on Left and Right Side of Optic
- GDI Dual Auto-Locking Quick Detach (ALQD) Levers
- Anti-Reflection Device & Protective Flip Caps

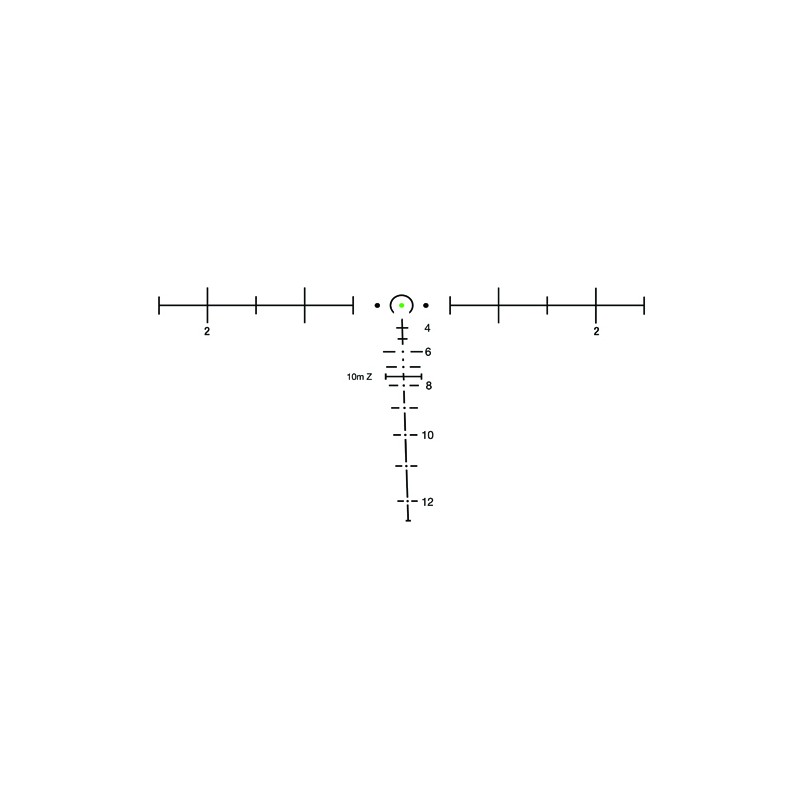

Reticle Features:

- Dual Illuminated Green Dot Aiming Point for Close-in, Reflexive Fire
- Bullet Drop Compensator (BDC) Designed for the M240 and M80 Ammunition to Incorporate Spin Drift of the Round at Extended Distances
- Horizontal Target Reference System (50Mils)
- Integrated 10m Z Qualification BZO Aiming Point Built Into the Reticle
- Ranging Reticle from 100m to 1200m

The TA648MGO-M240 also includes:

- 1 GDI Flattop Quick Release Mount
- 1 Brown Soft Case Pouch
- 1 Eyepiece Flip Cap
- 1 Objective Flip Cap with killFlash Anti-Reflection Device
- 1 Lens Pen
- 1 Lanyard Assembly for Adjuster Caps
- 1 ACOG Manual
- 1 Warranty Card

Specifications:

- Magnification: 6x
- Objective Size: 48mm
- Bullet Drop Compensator: Yes
- Illumination Source: Fiber Optics & Tritium
- Reticle Pattern: Dot with Target Reference System
- Day Reticle Color: Green
- Night Reticle Color: Green
- Calibration: M240
- Bindon Aiming Concept: Yes
- Eye Relief: 2.70"
- Exit Pupil: 8mm
- Field of View: 3.3 Degrees
- Adjustment at 100 Yards (clicks/in): 4 Clicks Per Inch
- Mount: Optic attaches onto mount for Mil-Std-1913 rail equipped weapons
- Mount Comes With: GDI Dual Auto-Locking Quick Detach Levers
- Housing Material: Forged Aluminum
- Dimensions: 10.5" L x 3.2" W x 3.5" H Including GDI AW6 Mount, Flip Caps and ARD
- Weight: 44.3 oz. with Mount
- Color: Black
