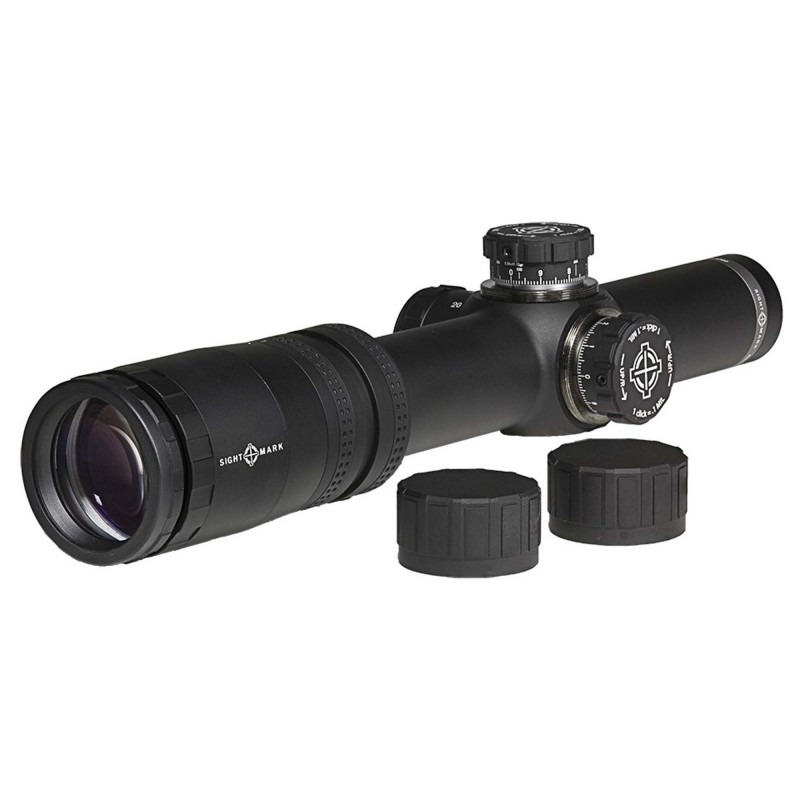

Pinnacle 1-6x24TMD Riflescope SIGHTMARK

Pinnacle Riflescope

Engineered with Sightmarks Triple Duty concept, the Pinnacle 1-6x24TMD features a Tactical Mil-Dash first focal plane reticle for range finding and quick target acquisition in competition, tactical or hunting scenarios. Precision-machined with high definition optics and premium Japanese glass, the 1-6x24TMD offers crystal clear resolution from edge to edge, free from distortions at any magnification. The red/green illuminated reticle remains in the same visual proportion to the target across the rifle scopes entire magnification range, allowing shooters to range find and shoot with holdovers at any magnification effectively. Its true 1x provides both-eyes-open usage for increased situational awareness at close range, while the 6x optical system hones in on far-away targets with ease. The device includes fully adjustable ballistic-tested BDC dials for both 5.56x45 55gr and 7.62x51 180gr loads. The riflescope boasts constant eye relief and a 6:1 zoom ratio for long-range shots, a wide field of view and 5 brightness settings for unmatched clarity in bright to lowlight conditions. Waterproof, fog proof and shock proof, it is fully submergible to 1m of water. Shooters have the luxury of a capped or exposed turret option as well as scratch resistant lenses, helping to further protect the optic from impact.

Features:

- Reticle Type: TMD
- MRAD Adjustment: 0.1 or one click
- Reticle Color: Red and Green
- Maximum Recoil: 800G
- Illuminated: Yes
- Battery Life: 50-900hrs
- Reticle Brightness Settings: 0-5
- Battery Voltage: 3v
- Finish/Color: Matte Black
- Sunshade: No
- Magnification: 1-6x
- Waterproof/Nitrogen Filled: Yes
- Objective Lens Diameter: 24mm
- Shockproof: Yes
- Eyepiece Diameter: 33mm
- Fog Proof: Yes
- Exit Pupil Diameter: 24-4mm
- Focal Plane: First
- Eye Relief: 103-mm
- IP Standard: IP67
- Field of View: 100m/ 29.7-5.2
- Body material: High-Grade Aluminum
- Field of view: ft 100yd/ 90-15.9
- Lens material/type: Glass
- Diopter Adjustment: 3.5
- Lens Coatings: Fully Multi Coated
- Tube Diameter: 30mm
- Battery Type: CR2032
- Parallax Setting: 100yrds
- Storage/Operating Temperature: -20 to 160F
- Windage Adjustment Range: MRAD 40
- Elevation Adjustment Range: MOA 40
- Windage & Elevation Lock: Yes
- Height: 56mm
- Length: 260mm
- Width: 73.5mm
- Weight: 20.4oz
