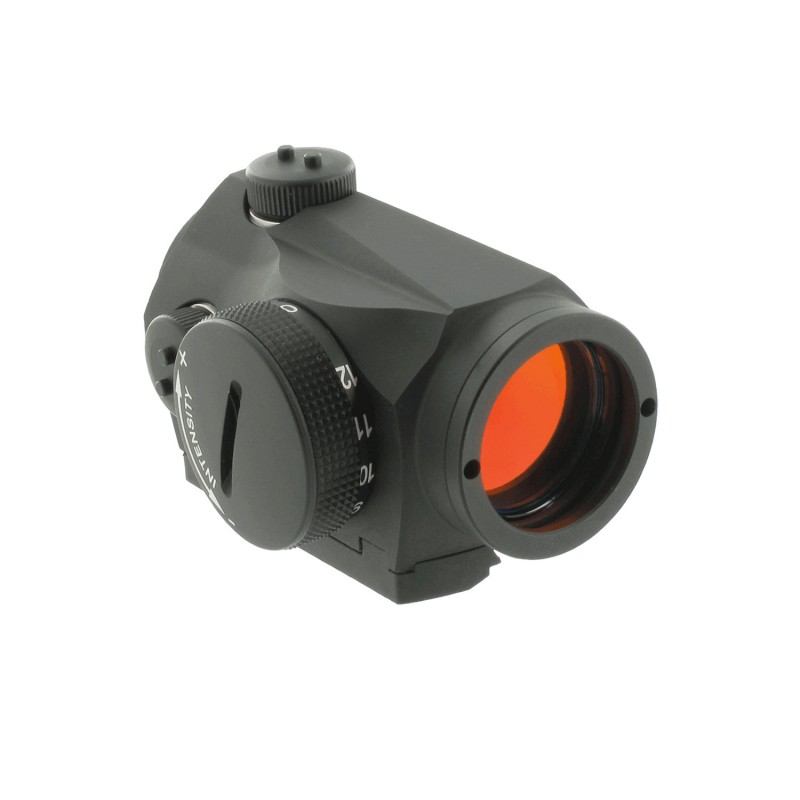

Micro S-1 with Mount AIMPOINT

Micro S-1 with Mount Matte Black

The Aimpoint Micro S-1 was designed specifically for use on shotguns. The innovative carbon fiber reinforced mounting system positions the optic on the lowest possible optical axis - without adding unnecessary weight. The Micro S-1 sight attaches directly to the shotgun at any point along the ventilated rib, and interchangeable adapter plates are included to accommodate most popular shotgun rib sizes.

The Micro S-1 greatly enhances hit percentage for hunters, as well as on the sporting clays course. It provides a compact, low-profile optic for shotgun hunters. The big, bright 6 MOA red dot provides an optimal combination of target acquisition speed and visibility.

Features:

- Versatile optic for all shotgun applications
-- Higher maximum light intensity settings for bright sky conditions
- Low integrated and carbon fiber reinforced rib mount
- Low optical axis
- Interchangeable base plates to accommodate most rib sizes (6-12mm)

Specifications:

- Operating Principle: Reflex collimator sight with LED
- Optical magnification: 1x
- Aiming Dot Size: 6 MOA
- NVD Compatible: No
- Optical coating: Anti Reflex
- Clear aperture: 18mm
- Eye relief: Unlimited
- Battery Type: 3V Lithium Battery, Type CR2032
- Battery Life: Day Time Use: 50 000 Hours (Over 5 Years of Continuous Use)
- Power Intensity: 12 pos. 1 Off, 12 Daylight of Which 1 Extra Bright
- Dimensions: 2 15/32" L x 1 11/16" W x 1 5/8" H
- Weight: 3.53 oz
- Housing Material: High strength aluminum; integrated mount: Carbon fiber reinforced polymer
- Surface Treatment: Anodized, semi matte
- Height of optical axis - sight and mount: 14 mm (9/16)
- Adjustment: Range ±1 m at 100 meters (±1 yds at 100 yds) in windage and elevation, 1 click = 13 mm at 100 meters = 10 mm at 80 meters = 7/16" at 100 yds
- Finish: Black
