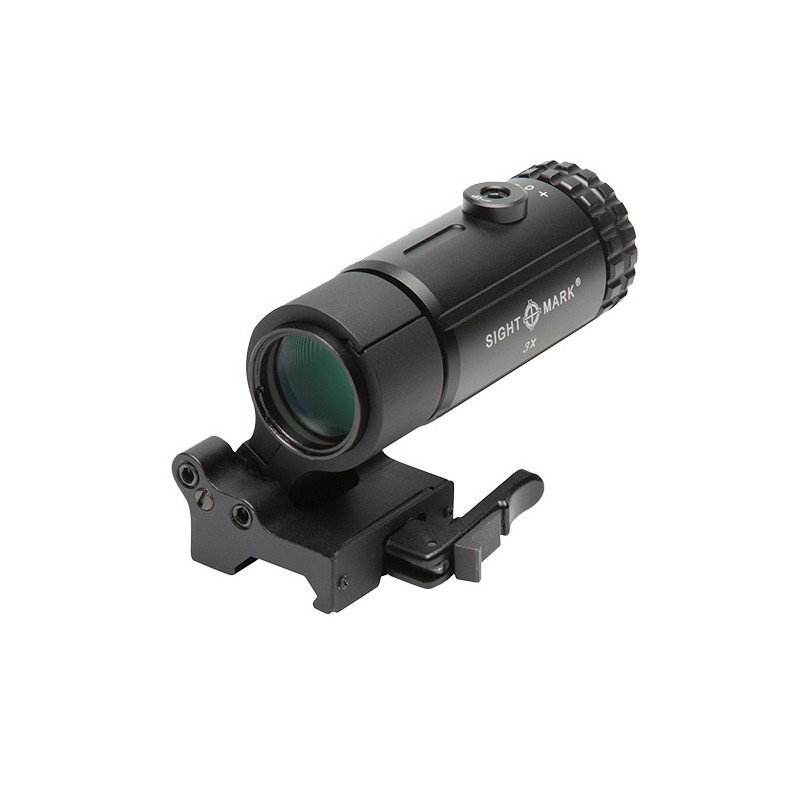

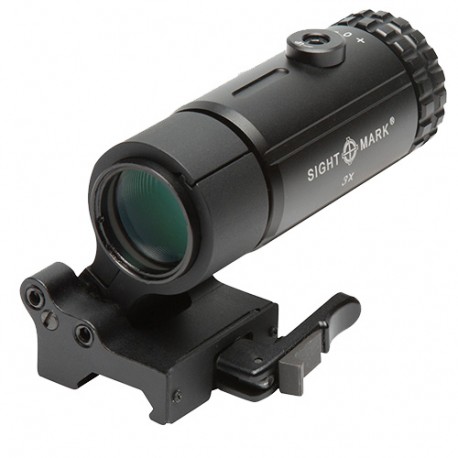

T-3 Magnifier with LQD Flip to Side Mount SIGHTMARK

Magnifier with LQD Flip to Side Mount

Designed to mount directly behind a reflex sight or red dot, the versatile T-3 Magnifier allows a quick and easy way to magnify your sight picture by 3x and provides an absolute co-witness. A straight tube magnifier a full .8 shorter than the model it replaces, the T-3 features a streamlined, low drag design, preventing the magnifier from snagging on equipment in important situations. Ideal for engagements up to 100 yards, if a close-range shooting scenario calls for no magnification, simply use the T-3s flip-to-side mount to rapidly transition between the optic systems. This durable magnifier is constructed of aluminum and provides improved brightness and resolution from fully multi-coated optics. External windage and elevation adjustments align the reticle to the center of the T-3s point of view. EOTech and Aimpoint compatible, the locking quick detach mount found on the T-3 lets the magnifier be quickly removed. Sightmark T-3 Magnifiers include flip-to-side LQD mount, adjustment tools and manual.

Features:

- Locking, quick detach mount for quick and easy removal
- Flip-to-side mount provides rapid transition between optical systems
- Fully multi-coated, scratch resistant
- External windage/elevation adjustment for reticle alignment
- Increases magnification of accompanying sights for greater engagement range
- EOTech and Aimpoint compatible

Includes:

- Flip to side LQD mount
- Adjustment tools
- Manual

Specifications:

- Magnification: 3x
- Diameter, Objective Lens: 23 mm
- Diameter, Eyepiece: 1.26"
- Diameter, Exit Pupil: 7.6 mm
- Eye relief: 2.25"
- Field of view, m@100m: 14.43
- Field of view, ft@100yd: 43.3
- Diopter Adjustment: +3 to -3
- Diameter, Tube: 30 mm
- Maximum Recoil: .308 Caliber
- Shockproof: Yes
- Fog Proof: No
- IP Rating (waterproof): IP55 - water resistant
- Finish/Color: Matte black
- Body Material: Aluminum
- Lens Coating: Full Multi-coated
- Mount Type: Picatinny
- Operating temperature, F/C: -22 to 160 / -30 to 71 F/C
- Length: 4"
- Width: 2.6"
- Height: 1.67"
- Weight: 10.6 oz.
