IR Laser & Green Laser Box/Locking QR Mnt NCSTAR

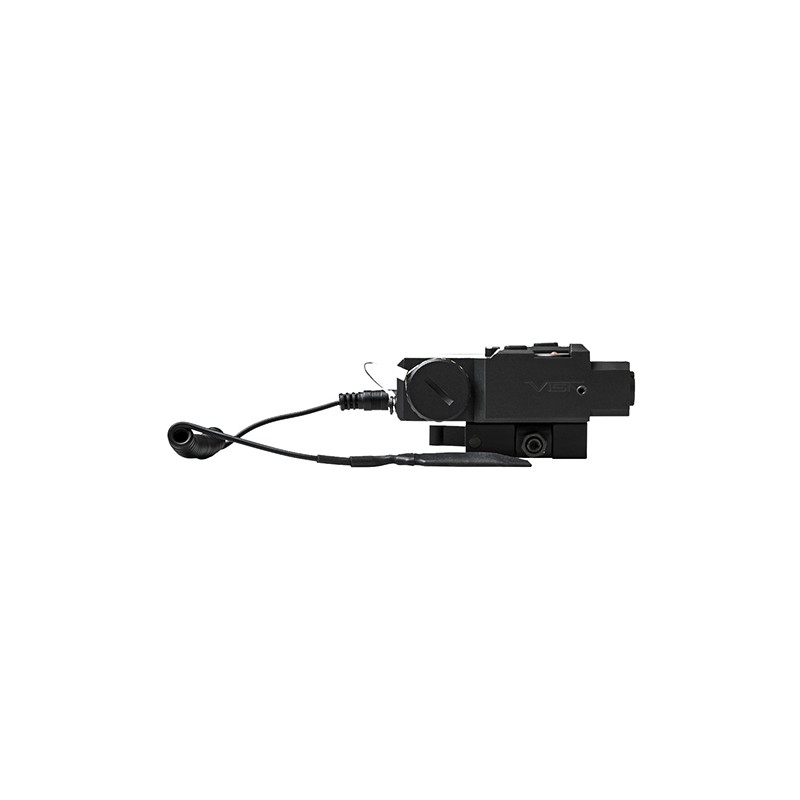

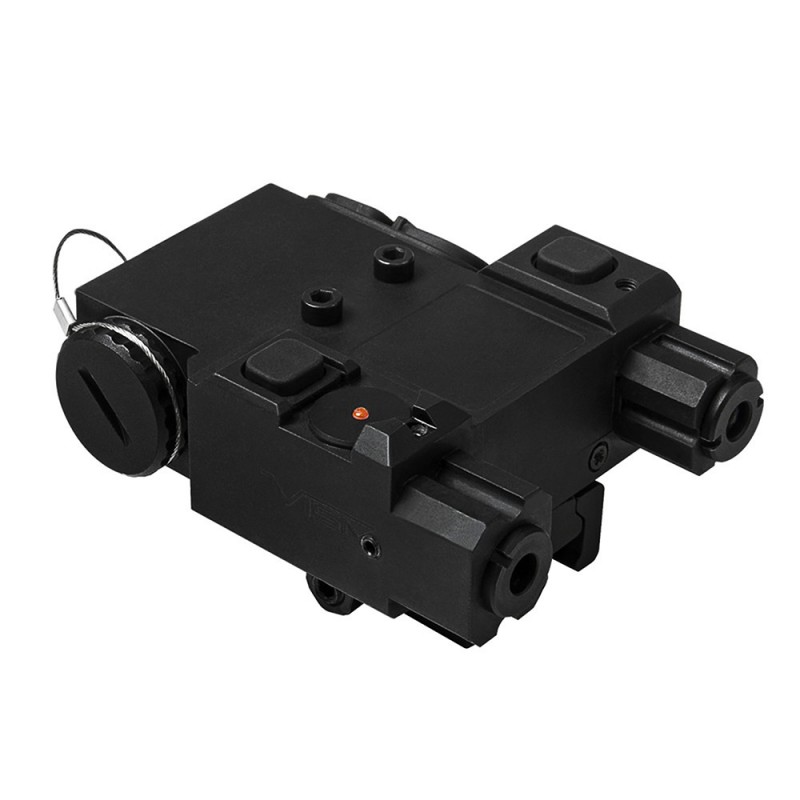

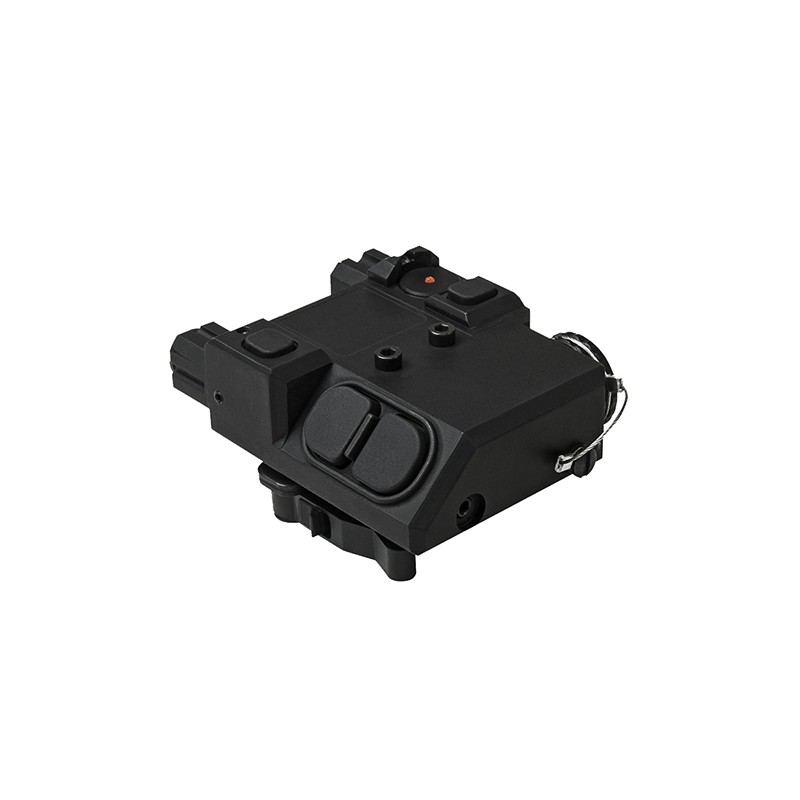

Green and Infrared Laser with Quick Release Mount, Black

NcStar Green and Infrared Laser with Quick Release Mount, Black

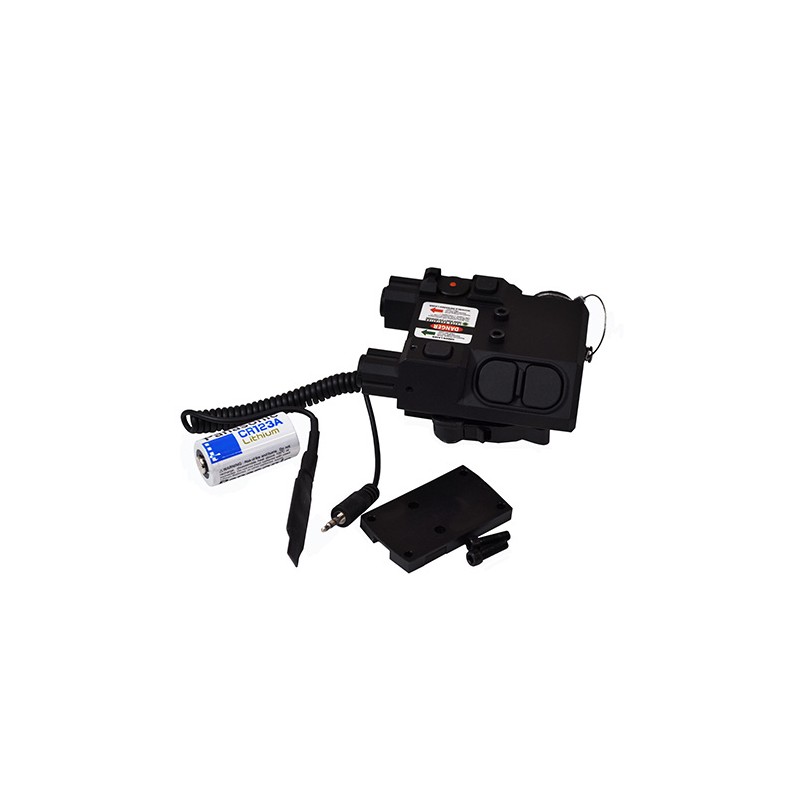

Package Includes

- Remote Pressure Switch
- Battery
- Adjustment Tools

Features:

- Quick Release Laser Designator with Green and IR (Infrared) Lasers. Designed to be mounted onto Picatinny rails for use as an aiming or pointing device. IR laser is not visible to the human eye, it requires special night vision devices and/or cameras that can see IR lights/lasers
- Fully adjustable Green Laser on the Left Pod that can be activated in three different ways: 45 degree angled Momentary Switch, top mounted Push button On/Off switch, or the included remote pressure switch. Class IIIa laser
- Fully adjustable IR Laser (not visible to the human eye) on the Right Pod that can be activated in three different ways: 45 degree angled Momentary Switch, top mounted Push button On/Off switch, or the included remote pressure switch. IR Laser is not visible to the human eye. You need Night Vision optics/goggles or video cameras that see in the IR spectrum
- Red LED light just above the IR laser to indicate when the IR laser is turned on
- Includes a two position remote pressure switch. The 3.5 mini jack plugs into the rear jack port of the Designator. The Green Laser and the IR Laser can be individually activated from the remote pressure switch. Class I laser
- Locking Quick Release Mount fits: Weaver/ Picatinny/ MIL-STD 1913 type rails
- Powered by 3 volt lithium batteries (CR123A included) for longer battery life

Specifications:

Green Laser:

- Laser Class: Class IIIa
- Wavelength: 532 nm
- Maximum Output Power: <5mW
- Operating Voltage: 3V DC
- Line Width: <0.1 nm
- Beam Divergence: <1mrad
- Beam Diameter: <1 mm
- Operation Current: <300mA

Infared Laser:

- Laser Class: Class I
- Wavelength: 850 nm
- Maximum Output Power: <5mW
- Operating Voltage: 3V DC
- Beam Divergence: 0.085 Degree
- Beam Diameter: 20mmX22mm at 15m
- Operation Current: <40mA
- Dimensions: 3.20" L x 2.30" W x 1.60" H
- Weight: 6.60 oz
- Battery Type: CR123A (3 Volts Lithium)
