D-45 Front and Rear Swing Sights DIAMONDHEAD

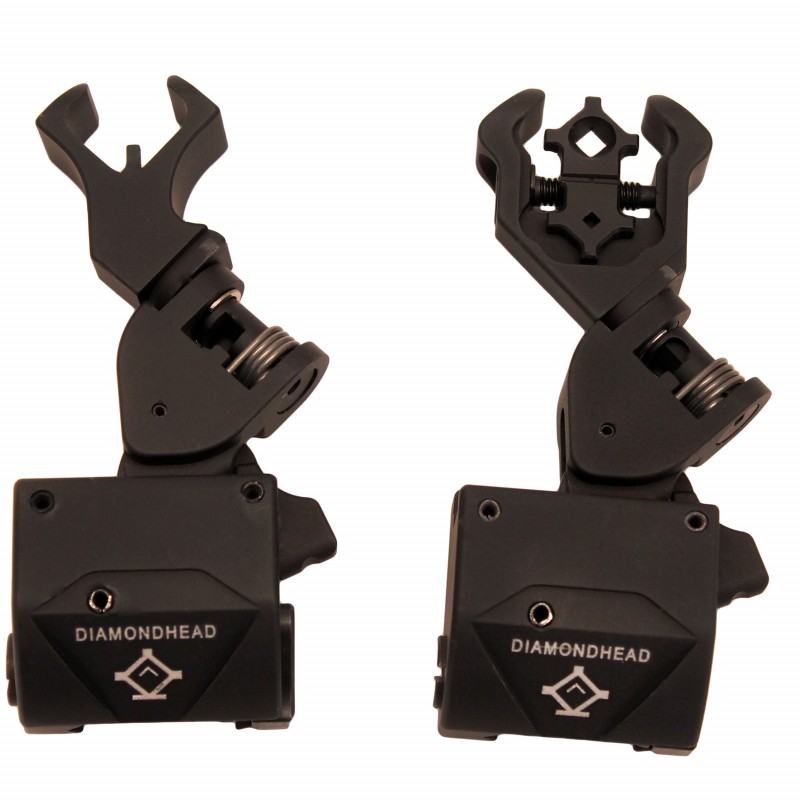

D-45 Front and Rear Swing Sights

Diamondhead's revolutionary D-45 Integrated Sighting System takes sighting to a different level. If a fast, accurate CQC target acquisition is needed or the optic goes down, simply flip out the D-45 Sights and roll the firearm 45 degrees counter-clockwise. The D-45 Rear Sight's Diamond-shaped apertures and Diamond-shaped upper housing allow the eye to place the D-45 Front Sight's post in the exact center of the Rear Sight's aperture. The spring-loaded D-45 deploys with the push of a button and stows flat.

Features:

D-45 Rear Sight Features:

- Diamond-Shaped Apertures and upper housing for faster target acquisition & centering
- The Rear Sight's Diamond-shaped upper housing enables fast CQC with apertures flat
- Dual same plane short & long range apertures (at exact same height of factory A2 sights)
- Stows under magnified optic
- Deploys and stows with small or large aperture active
- Accurate 0.5 MOA windage adjustment

D-45 Front Sight Features:

- Proprietary Diamond-Shaped housing
- Secure and accurate elevation adjustment
- Accepts all standard A2 front sight posts

Specifications:

- Fits all Diamondhead VRSTM Drop-In and Free-Floating Handguards, or any Mil. Std. 1913 Picatinny Rail System
- Stows like a Folding Sight
- True Bore Alignment - emulates a typical 90 degree bore alignment at 45 degrees
- The spring-loaded D-45 deploys quickly with the push of a button, stays up securely and stows flat
- Proprietary deployment system ensures sight remains zeroed in all situation
- Easy installation with proprietary clamping system, providing secure attachment to all Mil. Std 1913 Picatinny Rails
- Mil. Spec. Type 111 black anodized 6061 T6 aircraft aluminum construction
- Combat Durable
