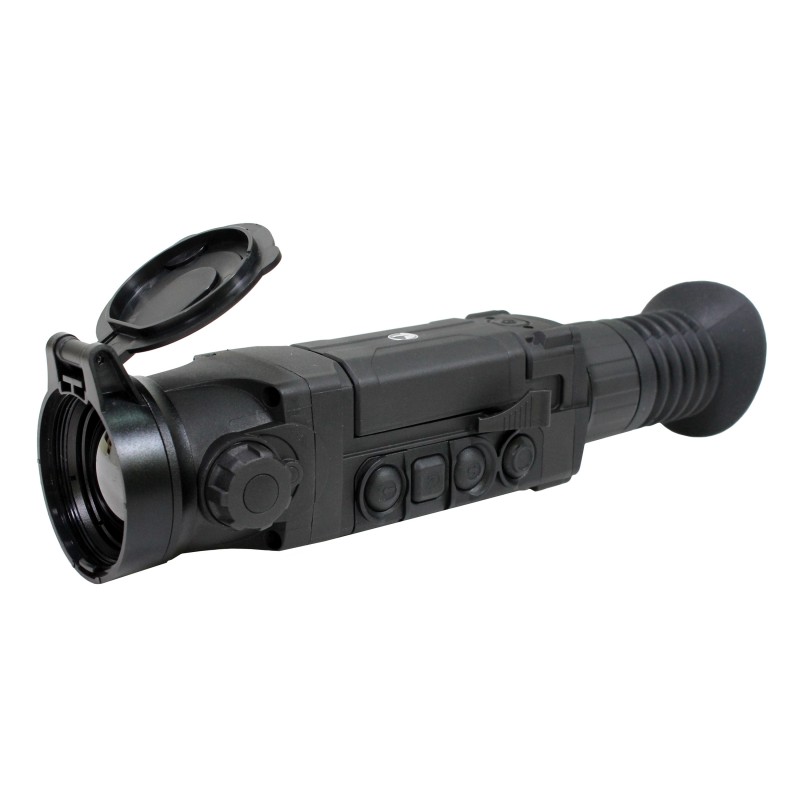

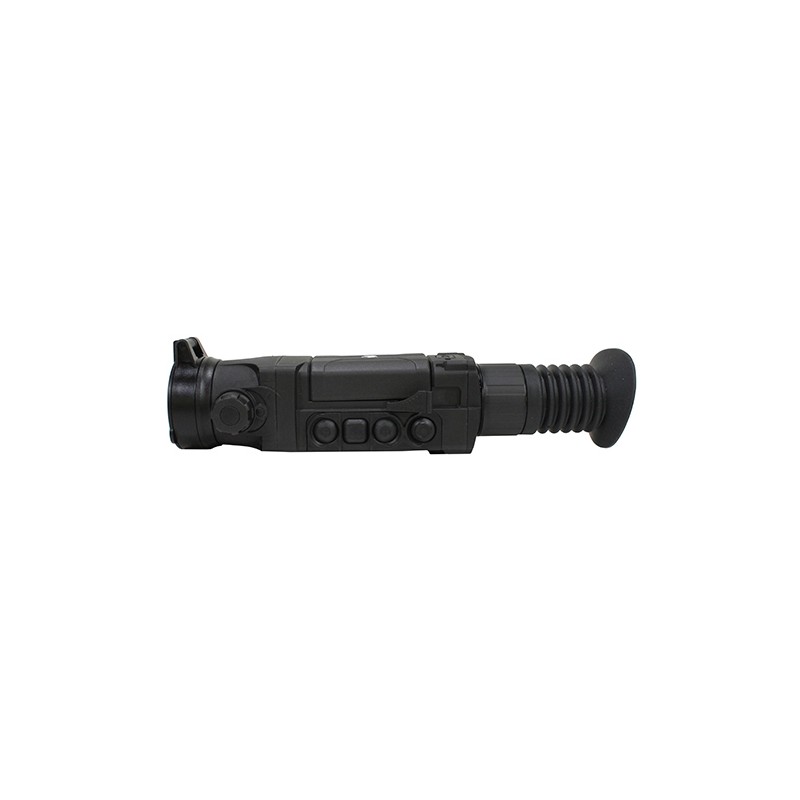

Trail XQ30 1.6-6.4x21 Thermal Riflescope PULSAR

Thermal Imaging Scope

The Pulsar Trail XQ30 Thermal Riflescope boasts advanced, user-friendly features, unheard of in its class. Get on target from any distance with the Trail XQ30s variable 1.6-6.4x magnification, delivering quality heat signatures up to 985 yards away. The XQ30 eliminates the need for extra batteries with a convenient rechargeable 8-hr. battery pack. Capturing footage of your experience has never been easier with built-in video recording, 8gb of internal memory, rich 17µm 640x480px resolution, a frost-resistant 640x480 AMOLED display and Stream Vision App compatible Wi-Fi. IPX7 waterproof, fogproof and dustproof, the Pulsar Trail XQ30 performs flawlessly in temperatures ranging from -13° to 122°F and delivers ultra-easy user interface with ergonomic button locations. The XQ30s popular white hot and black hot modes, 13 digital reticle options and 50Hz refresh rate provide users with fluid imaging, customized thermal mapping and a richly contrasted field of view. Proprietary picture-in-picture (PiP) ensures repeatable, precision accuracy. Additional features include a built-in accelerometer, stadiametric rangefinding, convenient carrying case and wireless remote.

Features:

- 985 yd detection range
- 4x digital zoom - continuous zoom and 2x, 4x stepped zoom
- Picture-in-picture digital zoom
- Built-in recording with recoil activation
- Stream Vision app connects scope to smart device
- External power supply adaptable
- 3 rifle profiles with 5 zero saves
- 13 variable electronic reticles
- One-shot zeroing with freeze function
- White-hot/black-hot viewing models
- High resolution AMOLED display
- Stadiametric rangefinder
- Rock, forest, and identification viewing modes
- IRIS technology, increased recognition and detection software
- Manual, automatic, and semi automatic calibration modes
- Defective pixel repair feature
- Variable magnification of 1.6-6.4x
- 640x480 resolution, 17um pixel pitch core

Package Includes:

- Battery pack charging unit
- USB cable
- Remote control with encode
- Weaver/picatinny rail
- Hex wrench
- Cleaning cloth
- User Manual
- Warranty card

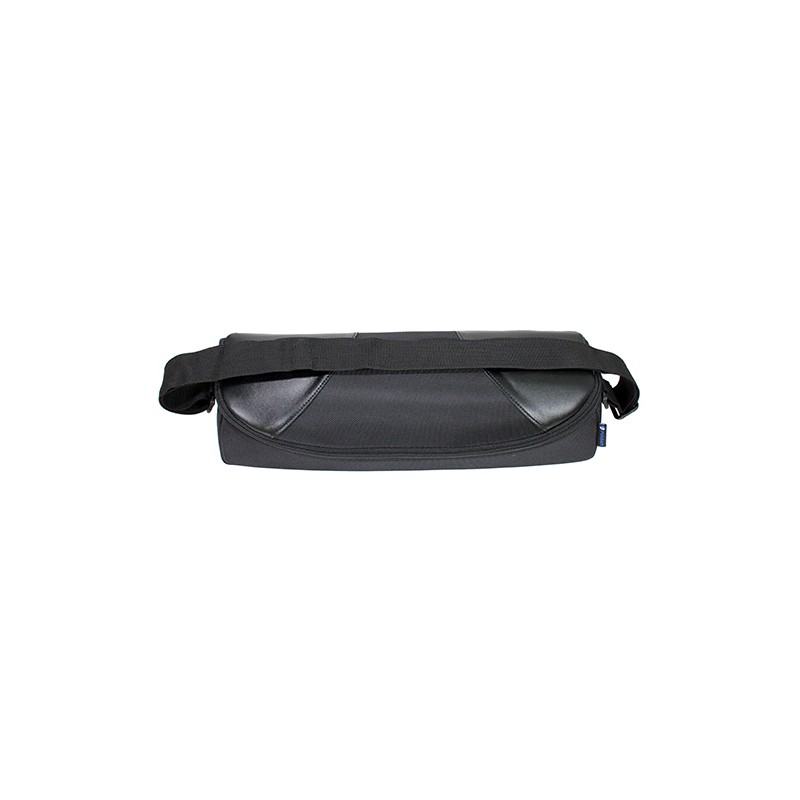

- Carrying case

Specifications:

- Operating Temperature: -13°F to 122°F
- Windage & Elevation, 1 click (h/v), mm@100m: 34/34
- Battery life, (with video out off): 8 Hours
- Battery Type: B-Pack (18650 Li-ion)
- Power Supply: 3-4.2
- Range of Detection, yd / m (Object (Human = 1.7*0.5m): 900
- Diopter Adjustment: +4 to -4
- Eye Relief: 50mm
- Distance, Minimum Focusing Distance: 5
- Number of Preloaded Reticles: 13
- Number of Preloaded Reticles: 13
- Mounting Brackets on Weapon: Weaver, Weaver Quick-release, CZ Quick-release
- Shockresistance, on Rifled Weapon: J6000 J
- Calibration: Manual, automatic, and semi-automatic
- Waterproof: Yes
- Field of View, m@100m, horizontal: 21.8/16.3 (4x Zoom)
- Field of View, °, horizontal * vertical: 12.4/9.3 (4x Zoom)
- Operating Modes: Rocks, forest, identification
- Video In/Out Availability: Yes
- Display Resolution: 640x480 Pixels
- Display Type: Amoled
- Pixel Pitch,: 17µm
- Spectral Sensitivity: 8-14µm
- Microbolometer Resolution: 384x288 Pixels
- Frame Rate: 50
- Microbolometer Type: Uncooled Microbolometer
- Defective Pixel Repair Option: Yes
- Defective Pixel Repair Option: Yes
- Magnification: 1.6x
- Stream Vision support: Yes
- Integrated Wi-Fi: Yes
- Optical Characteristic, Smooth digital zoom: x1.6-6.4
- Digital Zoom: 2x/4x
- Diameter, Lens: 21mm
- Lens Focus: 30mm
- Relative aperture, D/f': 1:1.6
- Model: XQ30
- Objective Lens: F30/1.6
- Microbolometer, Resolution: 384x288@17 pixels@pixel pitch, µm
- Frame Rate: 50 Hz
- Field of View: 12.4x9.3 horizontal & vertical without zoom, deg
- Range of Detection: 985 Yards
- Dimensions11.3 x 2.8 x 2.6 in
- Level of Protection (acc. to IEC 60529): IPX7
- Material, Lens: Germanium, Glass
- Body Material: Glass-nylon composite
- Type of Mount for Attachment of Additional Accessories: Weaver/Picatinny
- Optical Characteristic, Reticle, TypeVariable electronic reticles
- External Power Supply: 5V-Micro USB
- Dimensions: 11.30" L x 2.80" W x 2.60" H
- Weight: 16.90 oz
- Color: Black
