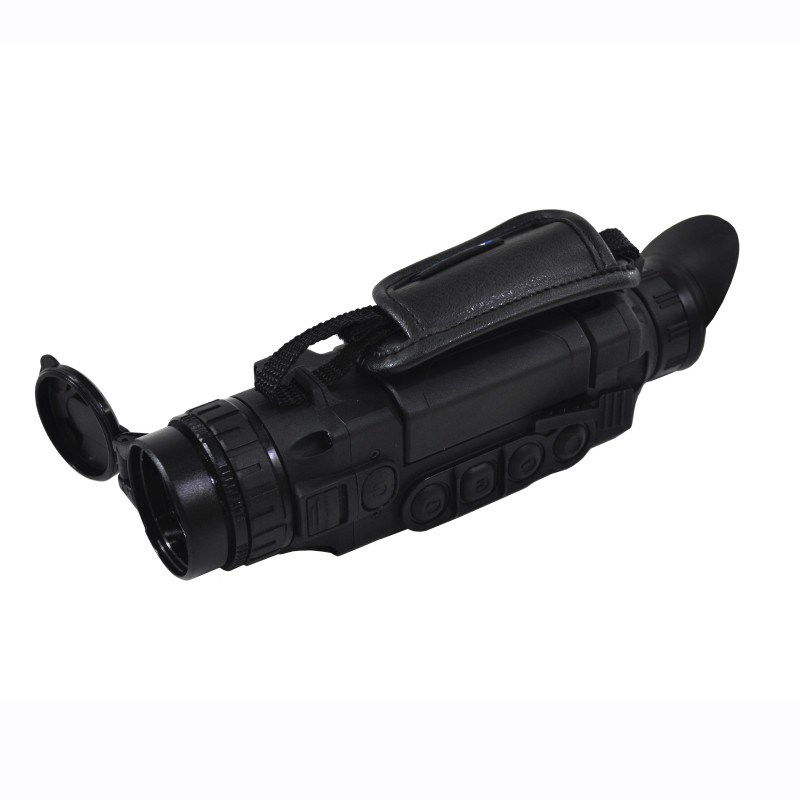

Thermal Imaging Scope Helion XP38 PULSAR

Thermal Imaging Scope

The Pulsar Helion XP38 Thermal Monocular turn up the heat on hunting, surveillance and search & rescue with lightweight heat-detecting convenience, built-in video recorder with 8gb of onboard storage and up to 17µm 640x480px resolution. Fogproof, dustproof and IPX7 waterproof-rated protection and a frost-resistant AMOLED display keep the Helion performing flawlessly in extreme conditions with temperatures ranging from -13° to 122° while the integrated Wi-Fi and compatible Stream Vision app offers wireless display monitoring from smartphones and tablets, streaming video, data transfers and operating system upgrades. The Hellion XP38 boasts a robust 8-color palette, including popular white hot and black hot; adult-size heat signature detection up to 1,475 yds.; 1.9-15.2 variable magnification 50Hz refresh rate; ergonomic button locations and ultra-easy user interface. The Helion XP38 Thermal Monocular even includes an accelerometer, stadiametric rangefinding, rechargeable 8-hr battery pack and convenient carrying case

Features:

- Adult-size heat detection up to 1,475 yds.
- Onboard video recorder with 8gb internal storage
- Built-in WiFi and Stream Vision App - Observe, Stream, Transfer, Upgrade
- IPX7 waterproof, dustproof, fogproof performance
- 1.9-15.2 variable magnification
- Detailed 640x480px resolution
- 8-Color viewing palette
- Lightning fast 50Hz refresh rate
- Integrated accelerometer
- Stadiametric rangefinder
- 8-hr rechargeable battery supply
- High resolution AMOLED display
- Updatable software
- Ultra-easy operator interface
- Wide operating temp range of -13° - 122°

Includes:

- Battery pack charging unit
- USB cable
- 220-USB plug
- Hand strap
- Lens cleaning cloth
- User manual
- Warranty card
- Carrying case

Specifications:

- Range of Detection, yd / m (Object (Human = 1.7*0.5m): 1475/1350
- Power Supply: 3-4.2V
- Stream Vision support: Yes
- Auto Power Off: No
- Range of Detection, M\n,Function Display-Off: Yes
- Range of Detection, M\n,Color palette: Yes
- Range of Detection, M\n,Inversion: Yes
- Range of Detection, M\n,Rangefinder: Yes
- Focusing Type of Distance: External
- Diopter Adjustment: +5 to -5
- Diameter, Exit Pupil: 5mm
- Eye Relief, mm: 16
- Battery Type: B-Pack (18650 Li-ion)
- External Power Supply: 5B-USB
- Operating temperature, F/C: -13 to 122 / -25 to 50
- Weight: 15.9 OZ.
- Height: 2.3"
- Width: 2.2"
- Length: 8.9"
- Remote Control: Yes
- Calibration: Manual, automatic, and semi-automatic
- Level of Protection (acc. to IEC 60529): IPX7
- Tripod Mount: 1/4
- Body Material: Glass-nylon composite
- Material, Lens: Germanium, glass
- Distance, Minimum Focusing Distance: 3
- Field of View, m@100m, horizontal: 28.6x21.5
- Format of photo files: *JPG
- Video Clip, Resolution: 640x480
- Video Clip, Format: *.avi
- Built-In Memory, Gb: 8
- Availability, Built-In Video Recorder: Yes
- Display Resolution, pix.: 640x480
- Display Type: AMOLED
- Pixel Pitch, µm: 17
- Spectral Sensitivity, µm: 8-14
- Sensor response: LWIR
- Microbolometer Resolution, pixels: 640x480
- Resolution of photo files: 640x480
- Pin Type of Power Socket: microUSB
- Field of View, °, horizontal * vertical1: 6.3x12.3
- Relative aperture, D/f': 1:1.2
- Lens Focus: 38
- Diameter, Lens, mm: 32
- Digital Zoom: 2/4/8
- Optical Characteristic, Smooth digital zoom, x: 1.9-15.2
- Magnification: 1.9
- Defective Pixel Repair Option: Yes
- Integrated Wi-Fi: Yes
- Operating modes: 3
- Connector Type, USB: microUSB
- Frame Rate, Hz: 50
